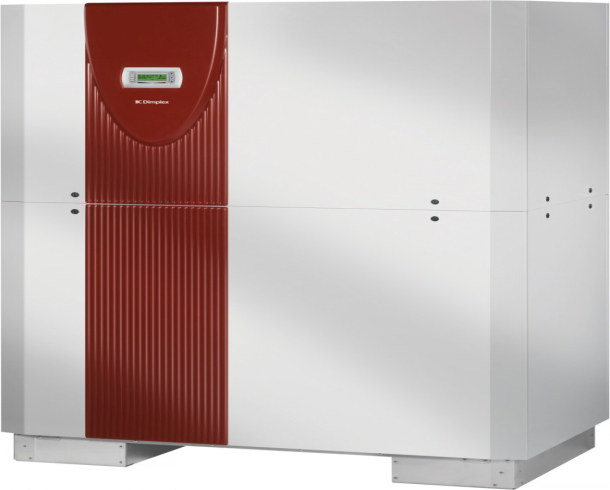

Reversible brine-to-water heat pump with waste heat recovery in cooling operation.

Heat pump for heating and cooling with integrated regulation installed indoors. Variable connection options for brine and heating connections on the back board of the casing. Access for service work from the front, no minimum clearance required on the sides, accessible from underneath with a lift truck. A sound-optimised metal casing and the integrated solid-borne sound insulation with free-swinging compressor base plate make direct connection with the heating system possible. High coefficients of performance (COP) thanks to compliance with EN 14511 for larger volume flows on the heat consumption side. Optimised heating and cooling operation via an external four-way reversing valve which is activated by the controller (special accessory). Reversible refrigeration circuit with additional heat exchanger for higher domestic hot water temperatures in heating operation and waste heat recovery in cooling operation. Sensor monitoring of the refrigeration circuit for a high degree of operational safety and integrated thermal energy metering (display of the calculated quantity of thermal energy for heating, domestic hot water and swimming pool water preparation). The control panel is integrated in a design screen and can also be used as wired remote control using the wall mounting set (special accessories MS PGD).
